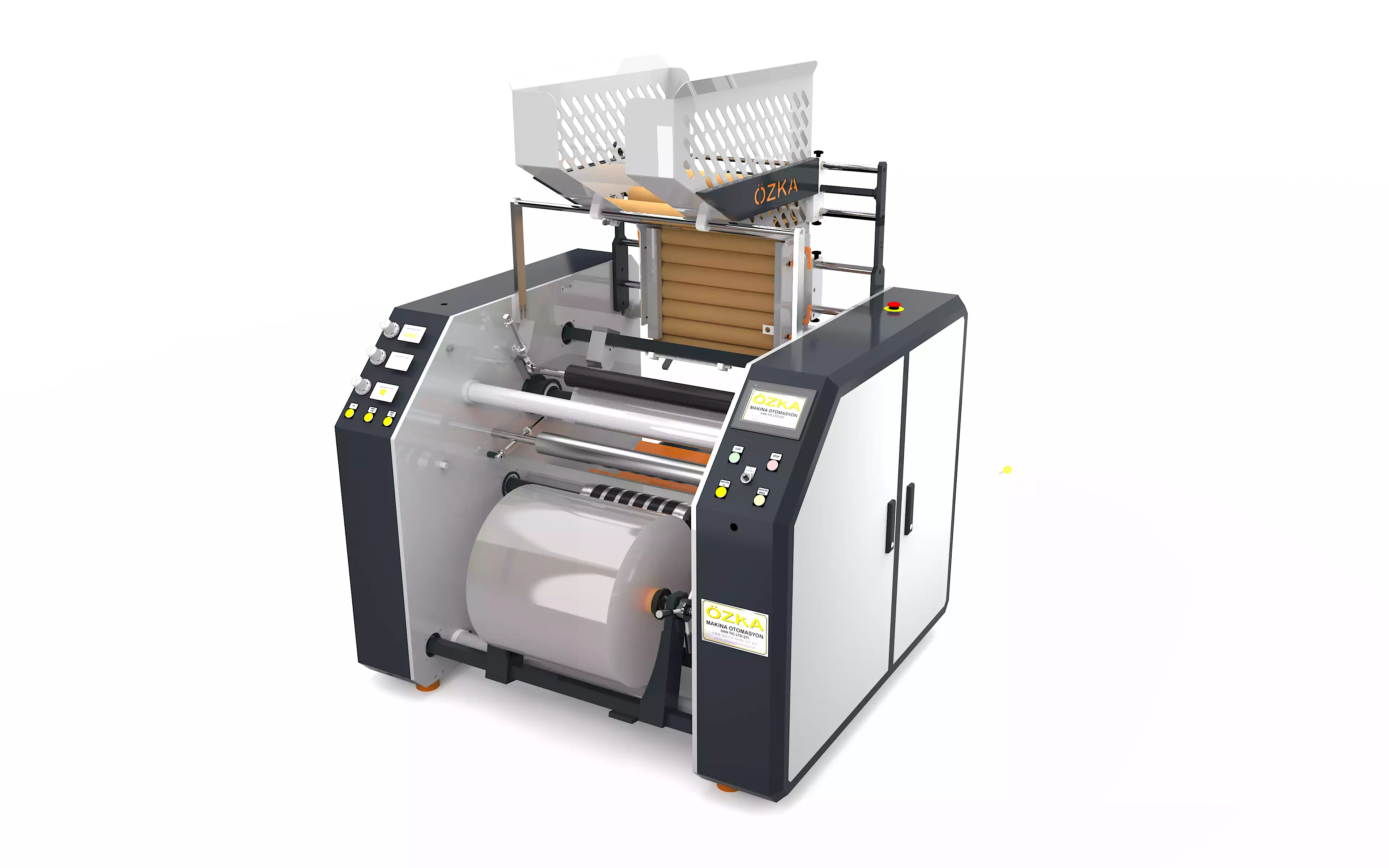

ASR 1200-XL Automatic Stretch Film Rewinder Machine

Machine used for rewinding pallet stretch of 17-23 micron thickness from jumbo rolls to rolls of 10-1500 meters long.

Machine Speed
1000 mt./min.
Roller Width
600mm
Main Motor Power
5.5 Kw
Core Size
Ø  50 - Ø 76 mm

ASR1200XL

Technical Specifications

ASR1200XL Automatic Stretch Wrapping Machine

  • Machine Speed: 1000 mt./min.
  • Rewinding Time: 90sec
  • Roller Width: 600mm
  • Main Motor: 5.5 Kw
  • Core Size: Ø  50 - Ø 76 mm
  • Finished Roll Diameter (Max): 300mm
  • Jumbo Coil Weight: 75 Kg
ASR1200XL

Machine Specifications

ASR1200XL Automatic Machine Detailed Features

  • Changing Role Full Automatically
  • Total Quantity And Total Meter Reporting
  • Stop Auto. When Paper Core is Finished
  • Stop Auto. When Stretch Film is Finished
  • Omron PLC Control System
ASR1200XL

General Specifications

General Feature Information For Our ASR1200XL Machine

  • OMRON 7" Touch Panel
  • Omron MAIN DRIVER
  • MINDMAN PNUEMATIC SYSTEM
  • Cutting with hot wire
  • Paper Core Cup (Ø 76)
  • Machine Weight: 1100 Kg
  • Machine Dimensions: 1650x1650x1800mm
