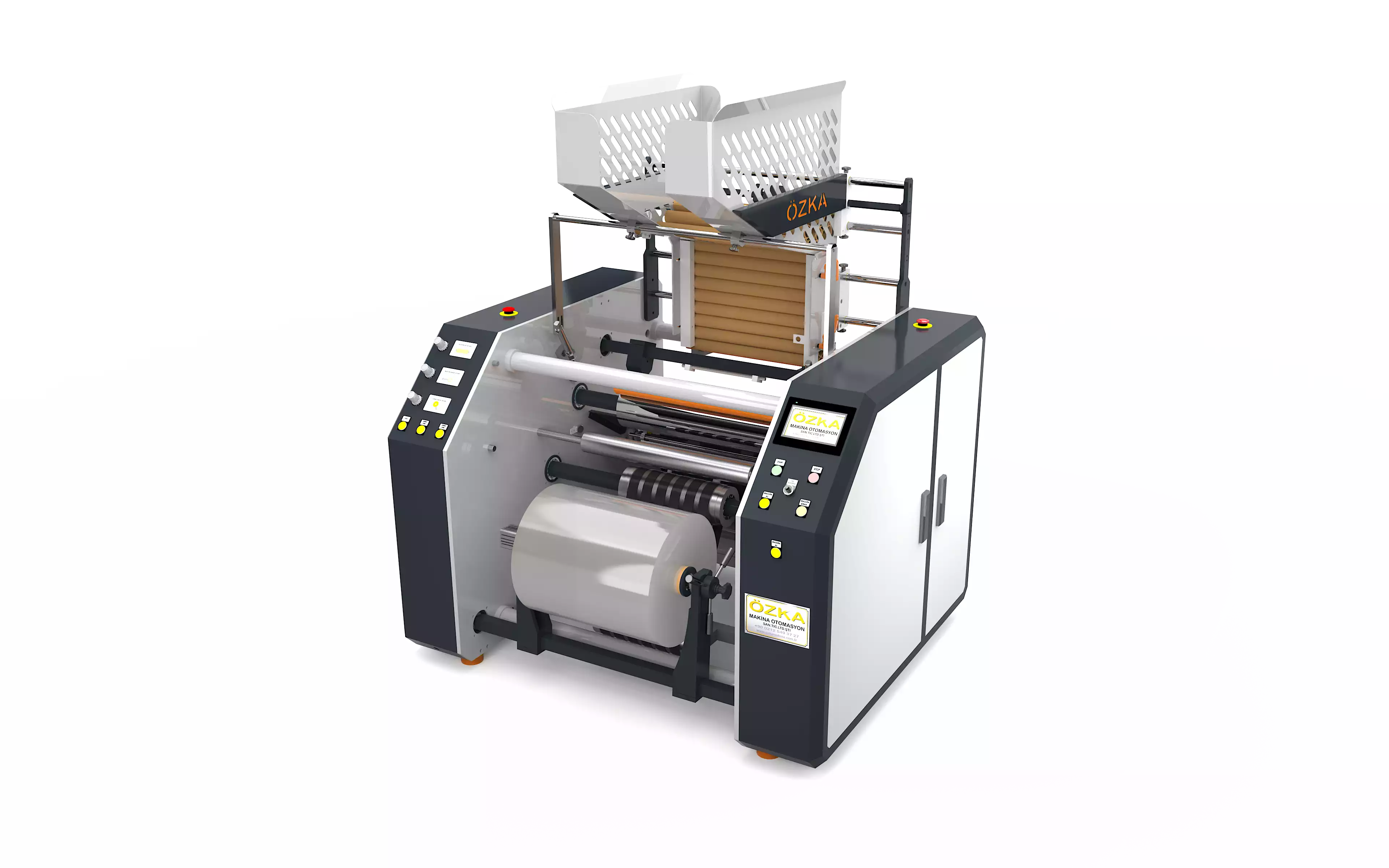

ASR 1200 Automatic Stretch Film Rewinder Machine

Machine used for rewinding food stretch pallet stretch of 8 - 23 micron thickness from jumbo rolls to smaller rolls of 10 - 300 meters

Machine Speed

1000 m/min

Roller Width
600mm
Main Motor Power
4 Kw
Paper Core Diameter
Ø  38 - Ø  50 - Ø 76 mm

ASR1200

Technical Specifications

ASR1200 Automatic Stretch Wrapping Machine

  • Machine Speed: 1000 m/min.
  • Rewinding Time: (300m) 23 second
  • Roller Width: 600mm
  • Main Motor: 4 Kw
  • Paper Core Diameter: Ø  38 - Ø  50 - Ø 76 mm
  • Finished Roll Diameter (Max): 150mm
  • Jumbo Weight: 75 Kg
ASR1200

Machine Specifications

ASR1200 Automatic Machine Detailed Features

  • Changing Roll Full Automaticlly
  • Total quantity and total meter reporting
  • Stop auto. When paper core is finished
  • Stop auto. When stretch film is finished
  • Omron PLC Control Sytem
ASR1200

General Specifications

General Feature Information For Our ASR1200 Machine

  • OMRON 7" Touch Panel
  • OMRON MAIN DRIVER
  • MINDMAN PNUEMATIC SYSTEM
  • Cutting with how wire
  • Paper Core Cup (Ø 50)
  • Machine Weight: 900 Kg
  • Machine Dimensions: 1550x1550x1700mm
